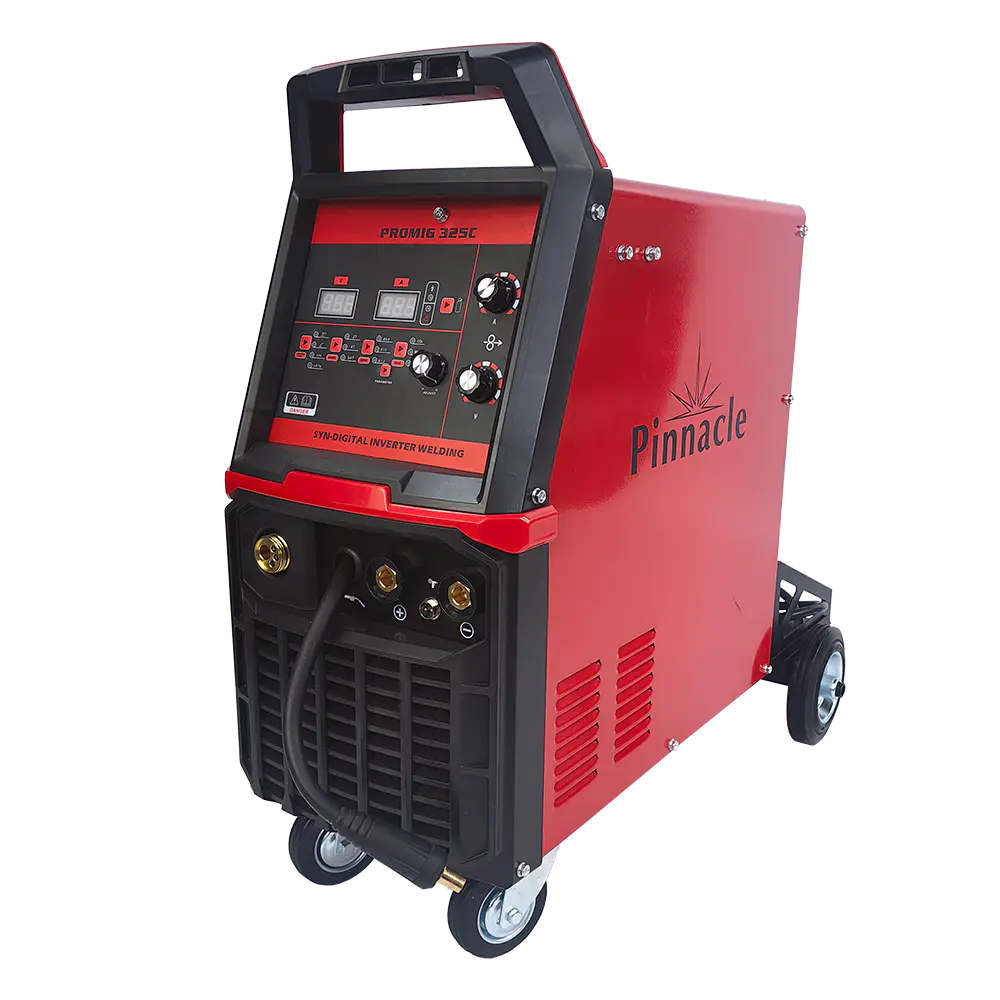

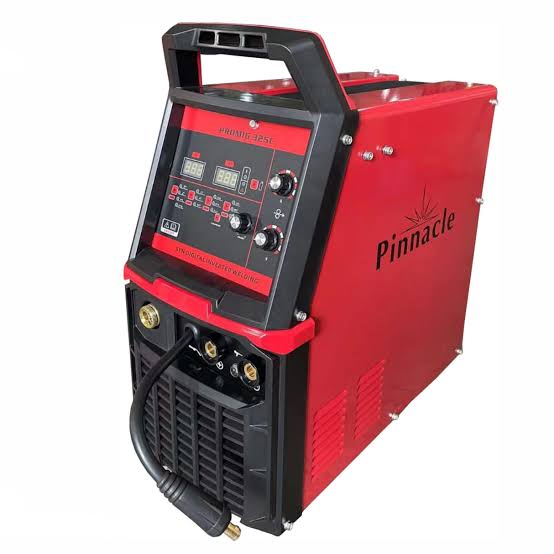

Pinnacle PROMIG 325C MIG Welding Machine
Pinnacle PROMIG 325C MIG Welding Machine
Pinnacle PROMIG 325C MIG Welding Machine
Notify me when Pinnacle PROMIG 325C MIG Welding Machine is available
Ask a Question about Pinnacle PROMIG 325C MIG Welding Machine
Couldn't load pickup availability
The Pinnacle ProMIG 325C Welding Machine. Engineered for excellence, it effortlessly handles MIG and MMA welding with precision, thanks to its Syn-Digital inverter welding Technology. Experience the power, features like...
The Pinnacle ProMIG 325C Welding Machine. Engineered for excellence, it effortlessly handles MIG and MMA welding with precision, thanks to its Syn-Digital inverter welding Technology. Experience the power, features like VRD and 2T/4T/S4T wire feeding modes for enhanced flexibility and control. Featuring a fully digital control system, Hot Start, Anti-Stick, and Arc Force Built-in functionalities, this machine ensures superior welding performance. With a robust 380v 300Amp capacity, the ProMIG 325C is your go-to choice for professional-grade welding.
- Syn-Digital inverter welding technology
- VRD & 2T/4T/S4T wire feeding
- Effective welding with less spatter
- Fully digital control.
- Hot Start, Anti-Stick and Arc Force build-in
- Over-current, over-heat, low voltage and fault protection.
| Input Power Voltage (V) | AC 380V +- 15%, 1PH |
| Input Voltage Frequency (Hz) | 50/60 |
| Rated Input Power (kV) | 9.2kV |
| Rated Input Current (A) | 40A |
| Output Current Range (A) | 50-300A |
| Duty Cycle (%) | 60% |
| Efficiency (n) | 85% |
| Wire Feeder | Internal |
| Welding Wire Size (mm) | 0,8-1,2mm |
| Insulation Class | F |
| Protection Class (IP) | IP21S |
