Install knobs and pulls with easy, repeatable accuracy

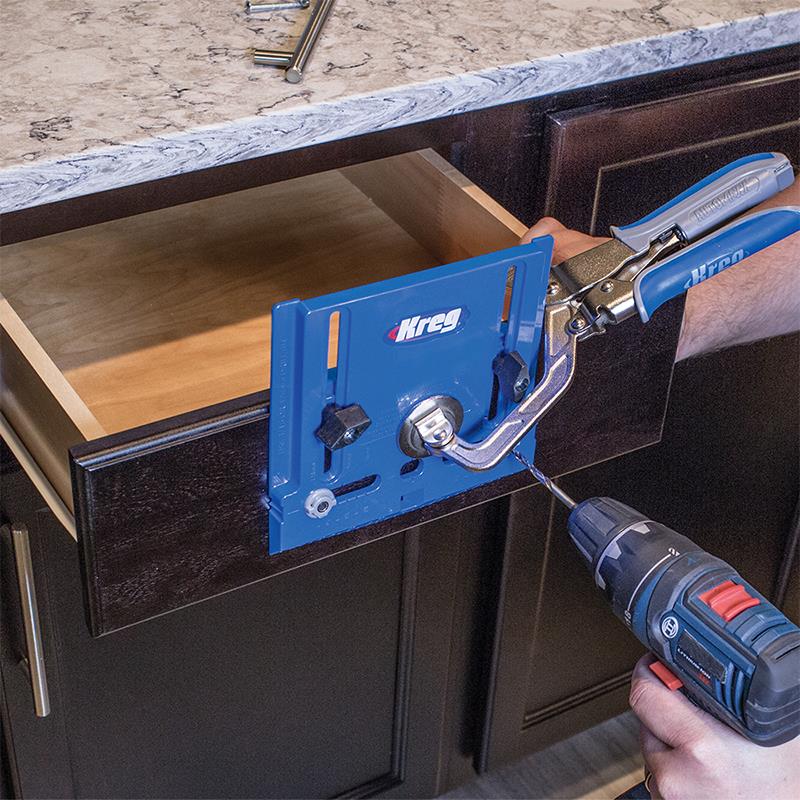

The Kreg Cabinet Hardware Jig takes the guesswork out of installing cabinet knobs and pulls. The moveable edge guide and measuring scales make it easy to position knobs precisely, while adjustable drill guides ensure straight holes for perfect knob and pull positioning every time.
Perfect for new construction and for refreshing entire rooms.
Whether youre updating your cabinets or building a project from scratch, adding hardware like knobs and pulls is often one of the final steps — and one of the most intimidating. Drill the holes incorrectly, and it can be very difficult to correct the mistake. The Cabinet Hardware Jig takes all the guesswork out of the process by allowing you to drill straight, accurately positioned holes every time, so youll know that every piece of hardware is positioned correctly and consistently.

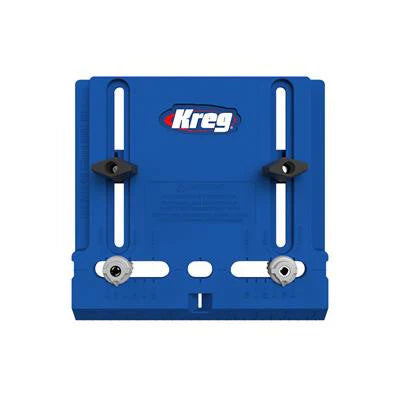

The Cabinet Hardware Jig features moveable, hardened-steel drill guides that lock in place to align with common hole-spacing measurements for cabinet knobs and pulls. This allows you to confidently drill straight, accurately positioned holes. A moveable edge guide and built-in measuring scales (in imperial and metric) ensure that those holes will be positioned where you want it every time, which means you can drill as many holes as you need without the uncertainty and potential mistakes that can come with measuring and marking every one.

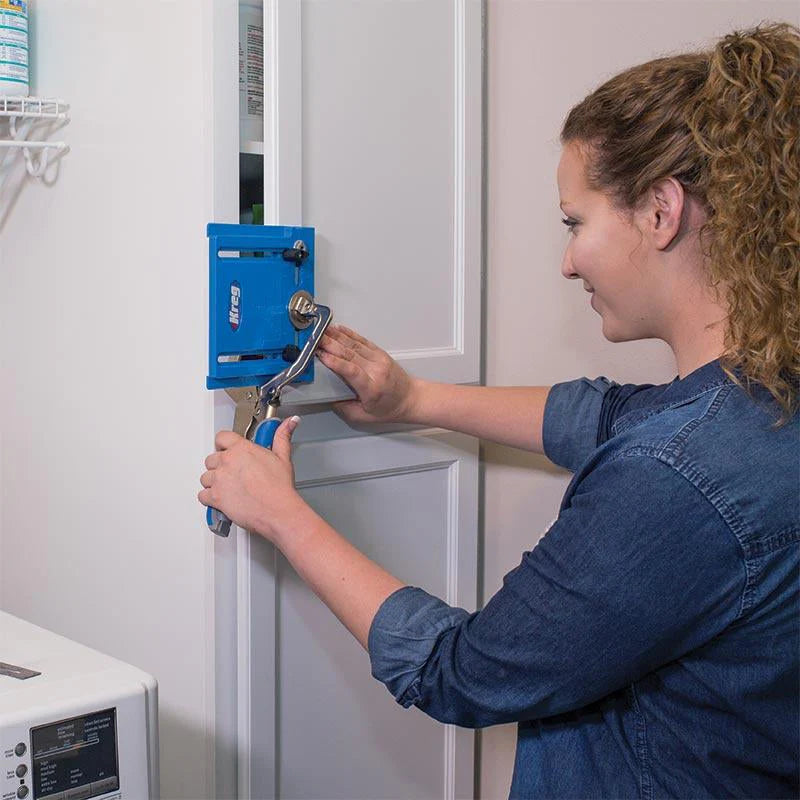

The Cabinet Hardware Jig is designed to be intuitive for beginners to use, but robust enough for professionals. All you need is a drill and a 3/16", bit, and the ability to set the jig to match your hardware and the position where you want it to go. Durable polymer construction makes the jig tough but light, and hardened-steel drill guides ensure that you’ll get straight, accurate holes — whether you’re drilling one, a few, or hundreds.
3/16" (5mm) drill bit required is not included.
Features
- Adjustable guides for accurate hole placement
- Strong, lightweight materials for easy handling
- Built-in measuring scales for repeatable results
- Durable hardened-steel drill guides

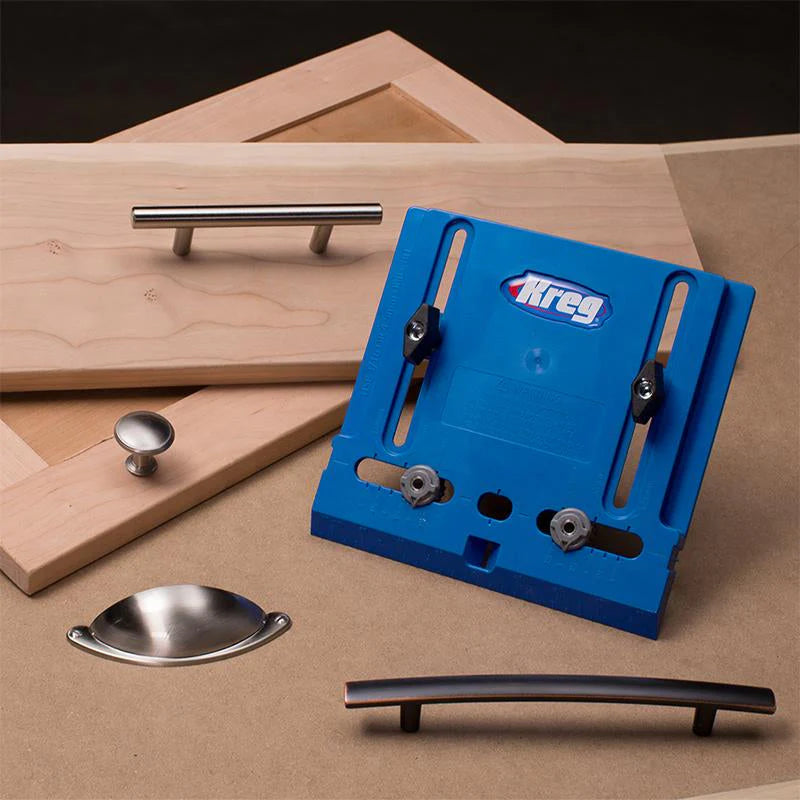

- Versatile for mounting single and multi-hole knobs
- Adjustable edge guide for easy positioning
Specification
| Features |
Cabinet Hardware Jigs for installing cabinet knobs and pulls
Works with imperial and metric sizes |
| Construction |
Plastic Polymer, Steel |
| Capacity |
1" to 5" (25mm-127mm) edge guide to hole-center spacing
2 1/2", 3", 3 1/2", 4", 4 1/2", 5" and 64mm, 96mm, 128mm drill guide spacing |
| Compatibility |
Kreg Wood Project Clamps and Face Clamps |
| Includes |
(1) Jig base
(1) Edge guide
(2) Drill guides with knurled nuts
(2) Non-slip pads
(2) T-knobs and bolts
(1) Owner’s Manual |
